XDR Radiology Integration Setup

New to this? See why practices use Send It Secure with XDR → Send HIPAA-compliant, encrypted email from XDR Radiology.

To send HIPAA-compliant, encrypted email through Send It Secure from XDR, you'll create an Access Credential in Send It Secure and enter it in your XDR email (SMTP) settings. That credential acts as the username and password XDR uses to send.

XDR is also known as XDR Radiology, XDR Bridge, XDR imaging, or XDR x-rays.

Admin only. You must be an administrator to create an access credential on a user.

Set up the integration

  1. Create an access credential in Send It Secure. Don't see the API & SMTP options (or the option to create an Access Credential) for this user? They may not be enabled for your subscription. Reach out at support.senditsecure.com and we'll review your subscription features and get it turned on.
  2. Keep the API & SMTP page open — you'll copy values from it in a moment.
    Send It Secure API & SMTP page — Show Key box
  3. In XDR, open the email / SMTP settings — shown below.

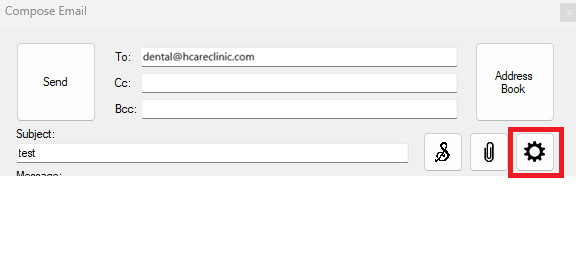

    Where to find the email / SMTP settings in XDR
  4. Enter the values below using the API & SMTP page you left open:
XDR field Enter
Sender email address The Send It Secure user's email address
Username Your Send It Secure Access ID
Password Your Send It Secure Access Key
SMTP / Outgoing Server smtp.protectedtrust.com
Port 587
Is SSL Checked (enabled)

XDR email / SMTP settings filled in with Send It Secure values

  1. Save the settings. That's it — send from XDR as you normally would. When a send is successful, the message window simply closes and the email is sent; there's no banner or confirmation message.

Troubleshooting

XDR (or an imaging / X-ray app) can't send — TLS / secure connection errors

XDR secure connection / TLS error when sending

This can affect XDR and other apps that send through SMTP — such as imaging, X-ray, or practice-management programs. If sending fails with a TLS or secure-connection error, the machine's .NET Framework apps may be falling back to older protocols. Confirm TLS 1.2 and TLS 1.3 are enabled, and that the enabled cipher suites match what our SMTP service requires — you can list them in PowerShell:

Get-TlsCipherSuite | Format-Table Name

Then set these registry values so .NET Framework 4.x uses strong cryptography and the system's default (modern) TLS versions. The WOW6432Node entries cover 32-bit applications on 64-bit Windows:

HKLM:\SOFTWARE\Microsoft\.NETFramework\v4.0.30319
    SchUseStrongCrypto        = 1   (DWORD)
    SystemDefaultTlsVersions  = 1   (DWORD)

HKLM:\SOFTWARE\WOW6432Node\Microsoft\.NETFramework\v4.0.30319
    SchUseStrongCrypto        = 1   (DWORD)
    SystemDefaultTlsVersions  = 1   (DWORD)

Restart the application (or the machine) for the change to take effect, then try sending again.

Still stuck? Open a ticket at support.senditsecure.com (or email support@senditsecure.com) and we'll help.
